Supply voltage: 230V AC
Power: 95W (pump head 9m)
Control method: non-inductive FOC (sensorless vector control)
Control mode: PWM mode (40Hz-4kHz), sensorless flow control mode (accuracy ±0.2m³/h)
Energy efficiency index: EEI<0.21

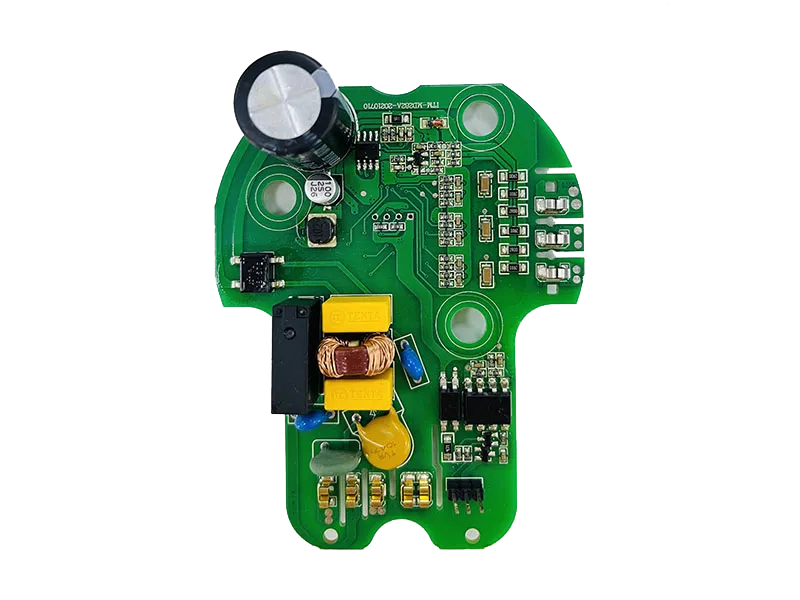

This pump control board is used in applications requiring estimation of system flow for 10KW-20KW variable frequency heat pump air conditioning and hot water circulation.
Intemotion is capable of making motor controllers in a wide range of equipment applications, from mechanical structures to electrical equipment. Our company focuses on developing and manufacturing a wide range of motor controllers, including low-voltage brushless DC motor controllers (below DC48V) and high-voltage brushless motor controllers (AC85-265V).
The brush motor controller is a motor that uses an H-bridge or a simpler single topology to drive the carbon brush commutation to control its operating state.
On the other hand, the brushless motor controller is a drive method that uses a 3-phase full-bridge method to drive a brushless motor.
We, Intemotion Technology Wuxi Co., Ltd. (hereafter referred to as Intemotion) are a committed producer of motor control solutions, since 2012. Our highly motivated research and development team is concentrated on industrializing motor controller and intelligent drive technologies. With a full suite of product drives, we predominantly design, sell, and provide services of DC brushless motor drive solutions in an effort to assist our clients.
